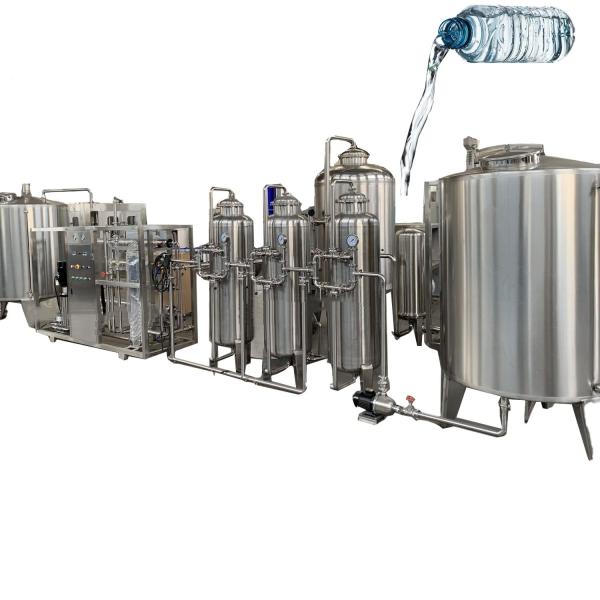

Automatic Stainless Steel Pure Water Treatment Machine Reverse
Osmosis Equipment Factory Water Treatment Plant
Product Description
Raw water pump → Silica sand filter → Activated carbon filter→
Sodium ion exchanger → Security filter → High-pressure pump
→Reverse osmosis system →Uv sterilizer→Ozone sterilizer →Finished
Water tank
1. Raw Water Pump: provide the pressure to silica sandfilter/active
carbon filter
2. Silica Sand Filter: get rid of turbidity, suspended matter,
organic matter, colloid and so on
3. Activated Carbon Filter: Remove the color, free chloride,
organic matter, harmful matter and so on
4, Water Softener: Get rid of calcium and magnesium ions in
original / source water, reduce water hardness.
5. Security Filter: prevent any deposition of large Particles into
the RO membrane, The accuracy is 5um, for holding back any large
particulates such as large iron, dust, suspended matter, impurity.
6. High Pressure Pump-- Provide the high pressure to RO membrane(at
least 2.0 Mpa).
7. RO system-- main part of pure water treatment plant. The
desaltation rate upto 99%, it is capable of removing over 99% of
ions and 98% of organic.
8.UV Sterilizer -- kill some bad substance that may also pass
through the reverse osmosis
9.Ozone Sterilizer -- Use ozone Kill bacteria not killed by UV
10.Finished Water Tank -- For filter water storage
| Automatic Pure Water Treatment System With Reverse Osmosis
Technology |
| Capacity | Capacity (Ton Per hour) | General power | Size (L*W*H) | Weight (kg) |
| RO-250L/H | 0.25ton | 0.55kw | 1350*900*1620mm | 250kg |
| RO-500L/H | 0.5ton | 0.75kw | 1550*900*1820mm | 350kg |
| RO-1000L/H | 1ton | 1.5kw | 1980*900*1940mm | 500kg |
| RO-2000L/H | 2ton | 2kw | 4800*700*2050mm | 700kg |
| RO-3000L/H | 3ton | 5kw | 6000*800*2200mm | 800kg |
| RO-4000L/H | 4ton | 6.5kw | 7000*900*2400mm | 1000kg |
| RO-5000L/H | 5ton | 8kw | 8000*1000*2700mm | 1500kg |
| RO-6000L/H | 6ton | 12kw | 8500*1600*1920mm | 2000kg |
| RO-8000L/H | 8ton | 15kw | 1000*1870*3000mm | 4000kg |
| RO-10000L/H | 10ton | 20kw | 12000*1700*3500mm | 4500kg |
| RO-15000L/H | 15ton | 25kw | 12500*1700*3500mm | 6500kg |
| RO-20000L/H | 20ton | 30kw | 13000*1900*3500mm | 9000kg |
| RO-30000L/H | 30ton | 35kw | 13500*2300*3800mm | 12000kg |
